INTRINSICALLY SAFE BATTERIES

RELIABLE ENERGY FOR HAZARDOUS AREAS



Logic Energy Intrinsically Safe (IS) two-way radio battery packs use only top quality materials, designed for safely powering handheld radios in dangerous areas where combustible dusts, fibers, or gases exist. Solid engineering and adherence to rigorous assembly standards ensure that Logic Energy batteries will keep workers safe and their portable radios reliably powered in industries including gas & oil, refineries, energy, milling, mining, and more

Key benefits to our aftermarket IS batteries include:

  • Certified by SGS to TIA-4950/CSA C22.2 No. 157/UL 913 5th Edition standard for Intrinsically Safe and non-incendive use. Request our FM To TIA-4950 Transition frequently asked questions.

  • Models include Japanese or Korean cells for optimal performance and are IP-rated (see specific models for exact rating).

  • Use of flex boards and shock absorbing materials protect the battery if dropped or subjected to sudden impact.

  • Excellent fit with specified radios and compatible with Endura and OEM chargers.

  • Built-in protection circuit to enable safe operation in a hazardous area; prevents sparks by limiting voltage and current spikes.


Part Number OEM Part Number Compatible Radios Chemistry Capacity IP Rating Notes
LE4547LIIS NEW! APX6000 PMNN4547 Li-Ion 3000 mAh IP68 Intrinsically Safe Battery
LE4069LIIS PMNN4069A XPR6000 Series Li-Ion 2200 mAh IP64 Intrinsically Safe Battery
LE4489LIIS PMNN4489 XPR7000 Series Li-Ion 3400 mAh IP68 Intrinsically Safe Battery
LE4489LIIS-V2 PMNN4489 XPR7000 Series Li-Ion 3400 mAh IP68 Intrinsically Safe Battery
LE4007MHXTIS RNN4007AR XTS3000, XTS5000 NiMH 3500 mAh IP64 Intrinsically Safe Battery
LEKNB40LIIS KNB-40LCV, KNB-68LC NX3200 Series Li-Ion 1900 mAh IP64 Intrinsically Safe Battery
LEKNBL2LIIS KNB-LS5 NX5000 Series Li-Ion 3400 mAh IP67 Intrinsically Safe Battery
LE234066LIIS BT-023406-006 XG-75P Li-Ion 2500 mAh IP64 Intrinsically Safe Battery
LEPA4MLIIS XL-PA4M / 14035-5050-02 XL-200Pi Li-Ion 5000 mAh IP68 Intrinsically Safe Battery
LE232LIIS BP-232FM IC-F3161 Li-Ion 2500 mAh IP68 Intrinsically Safe Battery

Browse the full range of batteries available in this category:
View all batteries

clamshell battery pack

Please send me pricing for my organization:

Intrinsically Safe
Intrinsically Safe

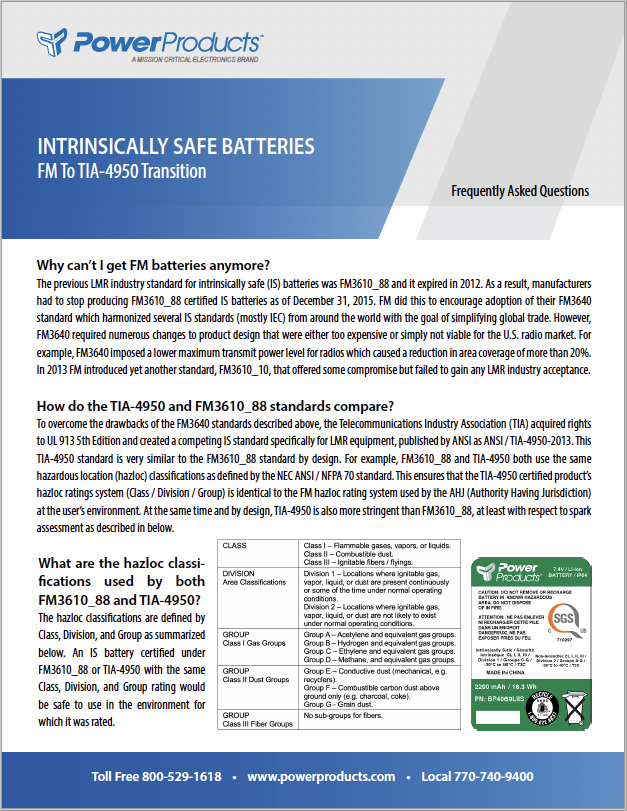

FM To TIA-4950 Transition
FM To TIA-4950 Transition
Li-Ion & LiPo Battery Storage
Li-Ion & LiPo Battery Storage
NiMH FAQ & MDO Notes
NiMH FAQ & MDO Notes
NiMH Battery Storage
NiMH Battery Storage
NiMH Battery Storage
Comparing Chemistries
Ingress Protection











impres accessories

Intrinsically Safe
brochure:

 impres accessories

impres accessories

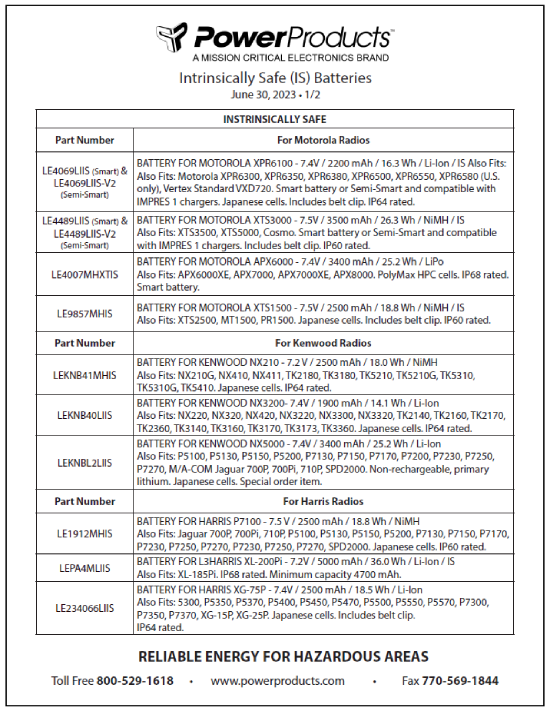

Intrinsically Safe
